HongEr Coil Feeder Zigzag NC Servo Feeder NCP-800

HongEr Coil Feeder Zigzag NC Servo Feeder NCP-800

HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800
HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800
CategoriesSmall Feeder Machine
AlbumView larger image
BrandHongEr
ModelNCP-800
Metal sheet widthup to 800 mm
Metal sheet thickness0.2-2.0 mm
Feed lengthup to 9999.99 mm
Feed accuracy±0.1mm
Roller pressurePneumatic
Servo motorMitsubishi / Yaskawa, Japan
Servo driverMitsubishi / Yaskawa, Japan
Max.feeding speed24m/min
Max.Zigzag movement speed18m/min
Update Time2019-11-18
Detail Information
HongEr Coil  Feeder Zigzag NC Servo Feeder NCP-800
Description

It uses high-speed linear bearings, rails are with special treatment, with low noise, high wear resistance, low friction load, and smooth movement speed


One way clutch

Made of tungsten carbide steel on the contacting surface to keep rigidity,precision and durabilit
The gear is hardened to HRC60° and groud to the best transmission accurac


Roller
High feed accuracy at exact positioning with hollow roller of less weight,and lower inerti/li>Hard chrome plated heat treated to HRC60° and ground for the best rigidity and durabilit


Disk brake
Apply the best brake lining to have accuracy,durability and rigidit


The anti-reversing device
The structure is the same as the one way clutcIt can precisely control the lower roller which will not reverse even for long time used as it is high in stability and recisio


The brakes will not out of control by the splashed waste oil when it is punching such cause the lower roller to reverse,and transfer distance unprecis
Speed can be reached to 30M/min if the anti-reversing device is fitteIn general it is 20M/miEfficiency has been increased about 50

Specification
Appication

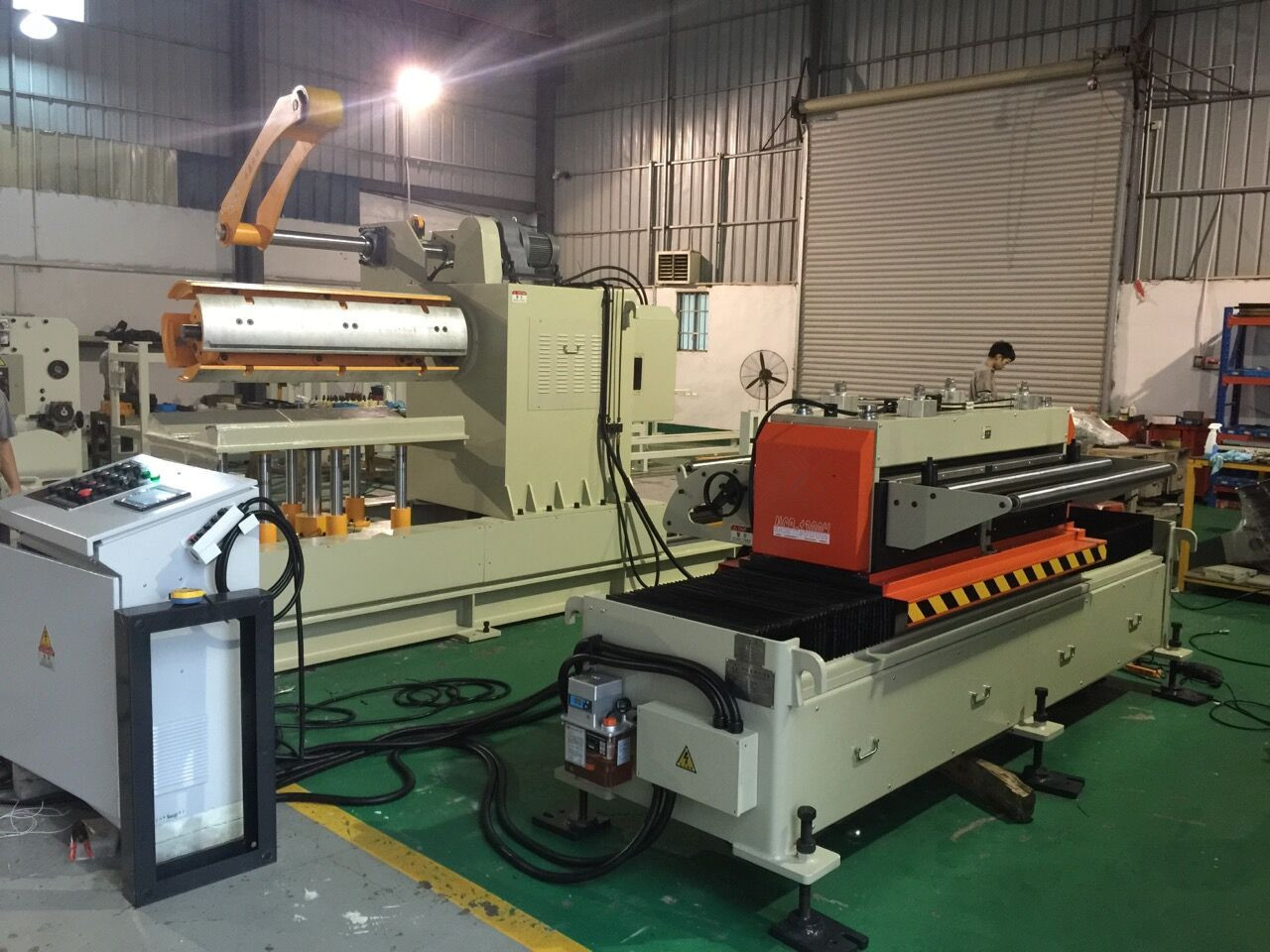

NCP-800 zigzag feeder machine
Apply to hardware, stamping, electronics, home appliance, auto parts, cabinets, metal, packaging, industrial, aviation, machinery and other industries

Suitable for low carbon steel, galvanized, aluminum, copper, cold rolled, Hot rooled, stainless steel, iron coil material and so on.

Zigzag servo feeder


Maximum feed speed 20m/min.

Use Japan Mitsubishi servo motor and driver, Schneider electric parts.


The feeding roller and leveling wheel by special heat treatment, high hardness (HRC 62), wear-resisting, long service life.
