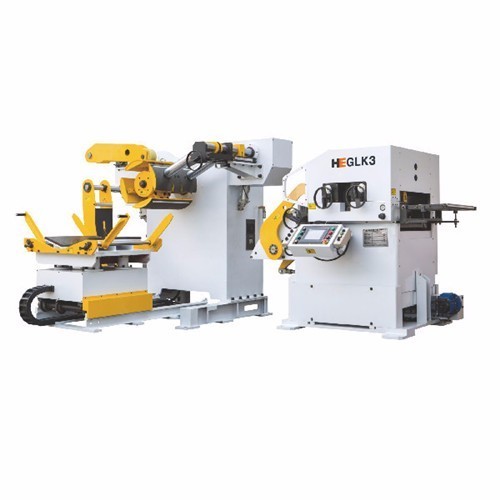

Automatic Steel Coil Feeder and Straightener Uncoiler Machine
Automatic Steel Coil Feeder and Straightener Uncoiler Machine
Categories | Compact Servo Roller Feeder |
---|---|
Album | View larger image |
Brand | HongEr |
Model | GLK4 |
Decoiler | Hydraulic Expansion, Motorized, Automatic |
Straightener | Gear drive, servo motor |
Servo Feeder | Yaskawa Driver and Yaskawa Motor |
Oiling Machine | To lubricate and cool down the coil sheet, prolongs the lifespan of dies |
Shearer | To cut off coil threads |
Coil Weight | Maximum 15 tons |
Coil Width | 1600 mm |
Coil Thickness | 0.6-6.0 mm thick |
Straightener | upper 4 / lower 3 |
Warranty | 1 year |
FOB port | Shenzhen |
Terms of Payment | L/C, T/T |
Update Time | 2019-12-14 |
Detail Information
Servo feeder straightener cum decoiler machine for metal stamping

straightener feeder with uncoiler Detail Features:
GLK4-400 handles material form 70mm to 400mm wide and up to 6.0mm thick
The 11 set rolls offer an extraordinary level of flatness to the materials.
Coil Car: 5Ton, Hydraulic cylinder lifting
Limiting Arm: Loating the coil.
Pressing Arm: Pneumatic pressure, PU Rubber
Arc Control: photoelectric loop control system
Supporting Arm
Hydraulic Expansion System
Straightener and feeder:
Oil input Supporting device
Straightener part: Ø68mm *7pcs(upper4/ Down3), Hardness HRC60±2.
Coil Input Supporting Device: Easily clamp the material head, lead it to straightener smoothly
Humanized Operation:
LCD Touch Screen: Coordinate with Safety Protection System, easy and safe to operate
Hand wheel with Dials: Precisely adjust straightening value via worm gear drive
Specification
Model |
GLK4-400 |
GLK4-600 |
GLK4-800 |
Coil Width(mm) |
400 | 600 | 800 |
Coil Thickness(mm) |
0.6-600 |
||
Max.Coil Weight(kg) |
5000 |
5000 |
7000 |
Max.Coil O.D.(mm) | 1400 | ||
Max.Coil I.D.(mm) | 508 | ||
Max.Feeding Length(mm) | 500 | ||
Max. Speed(m/min) | 16-24 | ||
Straightener Roller(pcs) | Upper4/ Down3 | ||
Feeding Roller (group) | 1 | ||
Servo Motor(kw) | 5.5 | 7.5 | 7.5 |
Uncoiler expansion | Hydraulic | ||
Uncoiler Motor(kw) | 2.2 | 2.2 | 3.7 |
Power Voltage(V) | 220V 60HZ/ 380V 60HZ | ||
Air pressure(Mpa) | 0.49 |
Application

Compact High strength coil feeder line
Be widely used in Automotive, Datacom & Telecom, and Medical markets
Whole production line:
3in1 coil feeder machine-press machine with progressive die
Our Customer

UnCoil feeder machine in UK
3 IN 1 Combo coil feeder machine for automotive stamping line equipped with mechanical press machine
