600mm width Servo coil feeder machine process 3in1 for press punch

600mm width Servo coil feeder machine process 3in1 for press punch

600mm width Servo coil feeder machine process 3in1 for press punch
600mm width Servo coil feeder machine process 3in1 for press punch600mm width Servo coil feeder machine process 3in1 for press punch
CategoriesCompact Servo Roller Feeder
AlbumView larger image
BrandHongEr
ModelGLK4
DecoilerHydraulic Expansion, Motorized, Automatic
StraightenerGear drive, servo motor
Servo FeederYaskawa Driver and Yaskawa Motor
Oiling MachineTo lubricate and cool down the coil sheet, prolongs the lifespan of dies
ShearerTo cut off coil threads
Coil WeightMaximum 15 tons
Coil Width1600 mm
Coil Thickness0.6-6.0 mm thick
Straightenerupper 4 / lower 3
Warranty1 year
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information
600mm width Servo coil feeder machine process 3in1 for press punch

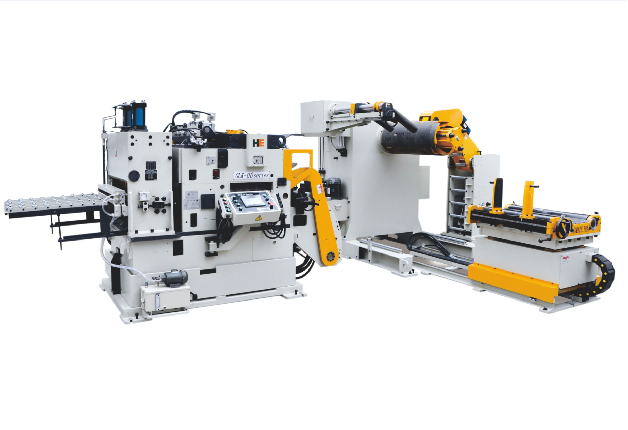

3in1 feeder machine GLK4-600 Detail Features
3 in 1 decoiler straightener feeder combo machine GLK4-600  is customized with safety fence for automotive parts stamping.

Specially designed back pressure roller set, suitable for punching, unwinding and feeding of coils with material thickness of 0.6mm~6.0mm and width of 70mm~1600mm.
Decoiler

The material frame is made of four-blade design. The blade curvature is consistent with the inner diameter of the material. The surface of the blade is hard-plated, smooth and wear-resistant. It will not damage the material during use. The inner diameter is expanded by a rotary cylinder and hydraulically expanded. The roll reel adopts a wedge-shaped slider structure and adopts a drum brake to effectively prevent the material from spreading due to the rotational inertia during braking.

Coil Car

Coil car helps to load the steel coil. The leveling adjustment can be adjusted by hand wheels. These make the operation easy and timesaving Moreover, the combined structure also save more work space.

Press arm
Coil well-knit, no disperse
Straightner part
GCr15 steel straightener rolls
Specification
Model
GLK4-400
GLK4-600
GLK4-800
Coil Width(mm)
400
600
800
Coil Thickness(mm)
0.6-600
Max.Coil Weight(kg)
5000
5000
7000
Max.Coil O.D.(mm)
1400
Max.Coil I.D.(mm)
508
Max.Feeding Length(mm)
500
Max. Speed(m/min)
16-24
Straightener Roller(pcs)
Upper4/ Down3
Feeding Roller (group)
1
Servo Motor(kw)
5.5
7.5
7.5
Uncoiler expansion
Hydraulic
Uncoiler Motor(kw)
2.2
2.2
3.7
Power Voltage(V)
220V 60HZ/ 380V 60HZ
Air pressure(Mpa)
0.49
Application
layout-products

GLK4-600H high yield strength decoiler straightener and feeder machine is suitable for 600mm width metal coil sheet with high tensile. This 3 in 1 unit feeder machine with automatic system can be equipped with mechanical press machine for automobile stamping in Tier 1 manufacturers.

Our Customer
UnCoil feeder machine in UK
3 IN 1 Combo coil feeder machine for automotive stamping line equipped with mechanical press machine
