Cold rolled leveling machine steel straightening combination coil straightener

Cold rolled leveling machine steel straightening combination coil straightener

Cold rolled leveling machine steel straightening combination coil straightener
Cold rolled leveling machine steel straightening combination coil straightenerCold rolled leveling machine steel straightening combination coil straightenerCold rolled leveling machine steel straightening combination coil straightenerCold rolled leveling machine steel straightening combination coil straightener
CategoriesMetal Strip Straightener
AlbumView larger image
BrandHongEr
ModelHS-600A
Metal sheet thickness0.5-4.5 mm thick
Suitable materialSteel, gi, cr, hr, other metal materials
Straightening speed0-16 m/min
Metal sheet width50-600 mm wide
straightener rollersdiameter 70 mm * 9 pcs
pinch rollersdiameter 95 mm * 2 pcs
Roller PressurePneumatic rods
Roller adjustmentEccentric turbine worm adjusting
power7.5 HP / 5.6 kW
InverterDelta Brand, from Taiwan
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information
Cold rolled leveling machine steel straightening combination coil straightener

1) This is a special designed straightener for medium thick products that need improving the high precision punching treatment. As we all know, coil materials can not produce good products without the flattening and stress relieving treatments; therefore, the performance of the straightener is critical in the production process.

2) The flattening and the straightening secondary wheels adopt the imported SUJ2, milling after HRC60°heat treatment and starts production after plating the hard chrome to ensure evenness of the chrome layers and the form tolerances of each bearing.

3) The flattening adjusting adopts floating four-point balancing equipment, with the dial indicator, which can find the leveling point rapidly.

4) Adopts the cardan joint and the gear transmission, suitable for straightening high precision requirement products.

5) Except the straightening roller the additional feeding wheel improves the punching precision.

6) Adopts the high precision axis, and the additional lubrication system prolongs machine life span.

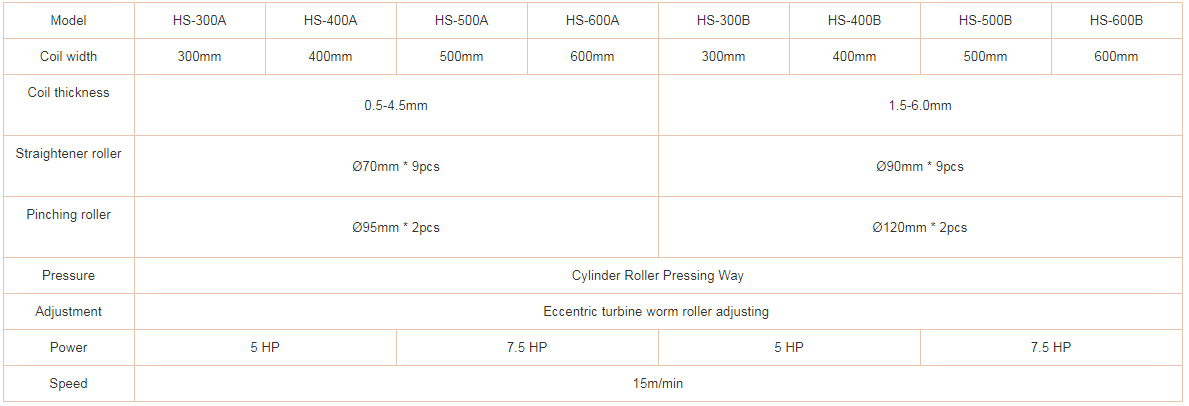

Specification
Appilcation

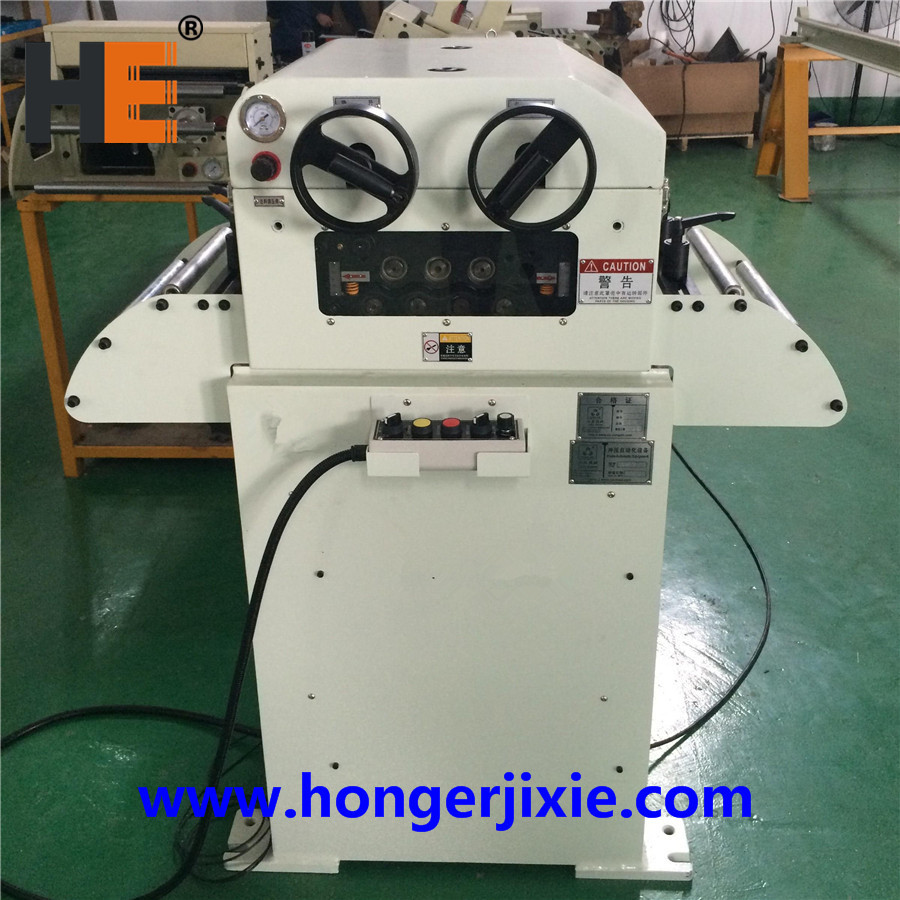

Straightener machine for metal stamping

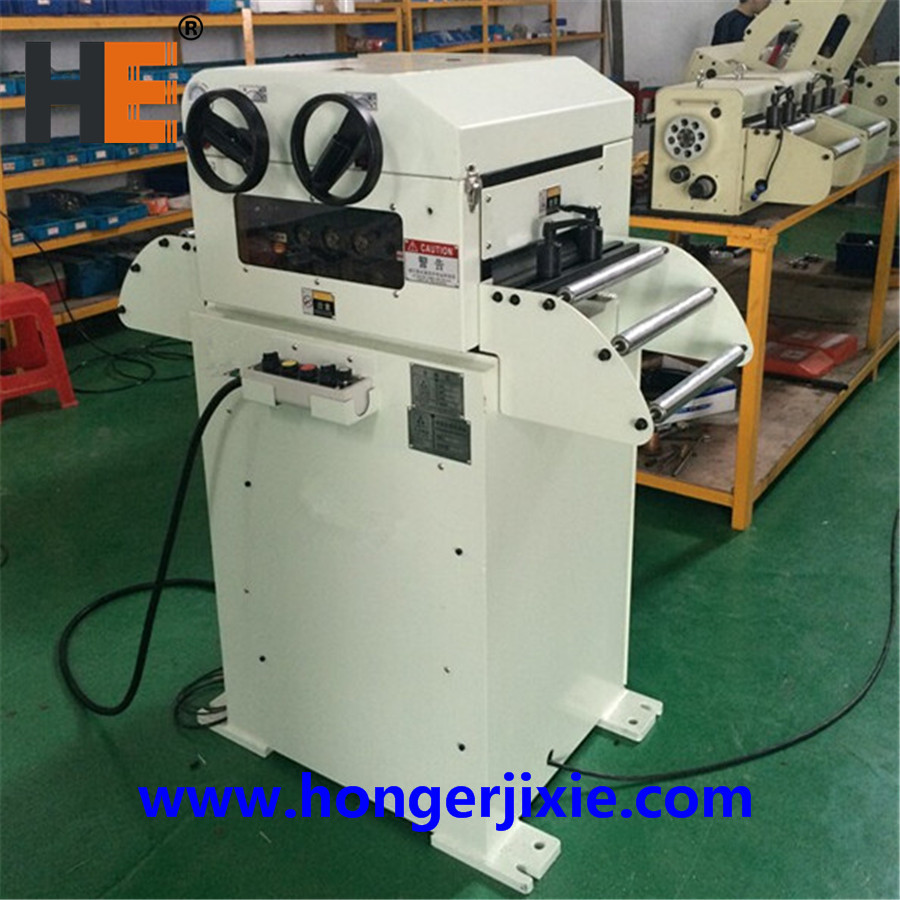

Precision sheet metal straighteners with air cylinder roll pressure

Adopt worm gears guarantee a high precision straightening value adjustment

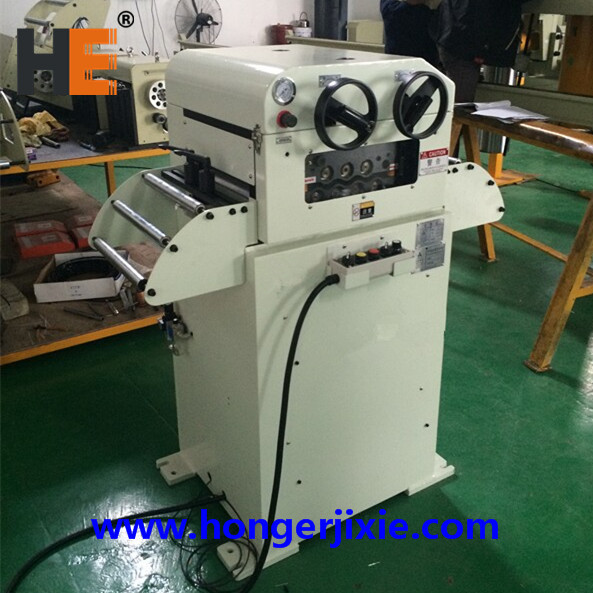

Steel straightener
9 pcs of high-quality GCr15 STRAIGHTENER ROLLS, Hardness reach HRC, with wear resistance.
The staightening speed is about 15m/min, with Delta inverter for speed control
Package

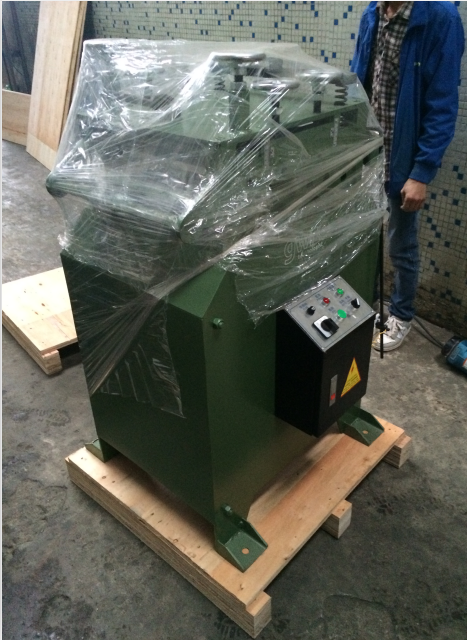

Package of straightener machine

Wooden box package
