3 in 1 Compact Feeder levelling Machine with decoiler

3 in 1 Compact Feeder levelling Machine with decoiler

3 in 1 Compact Feeder levelling Machine with decoiler
3 in 1 Compact Feeder levelling Machine with decoiler3 in 1 Compact Feeder levelling Machine with decoiler3 in 1 Compact Feeder levelling Machine with decoiler3 in 1 Compact Feeder levelling Machine with decoiler3 in 1 Compact Feeder levelling Machine with decoiler
CategoriesCompact Servo Roller Feeder
AlbumView larger image
BrandHongEr
ModelGLK4
DecoilerHydraulic Expansion, Motorized, Automatic
StraightenerGear drive, servo motor
Servo FeederYaskawa Driver and Yaskawa Motor
Oiling MachineTo lubricate and cool down the coil sheet, prolongs the lifespan of dies
ShearerTo cut off coil threads
Coil WeightMaximum 15 tons
Coil Width1600 mm
Coil Thickness0.6-6.0 mm thick
Auxillary rollersEquipped
CertificationCE Certificate
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information

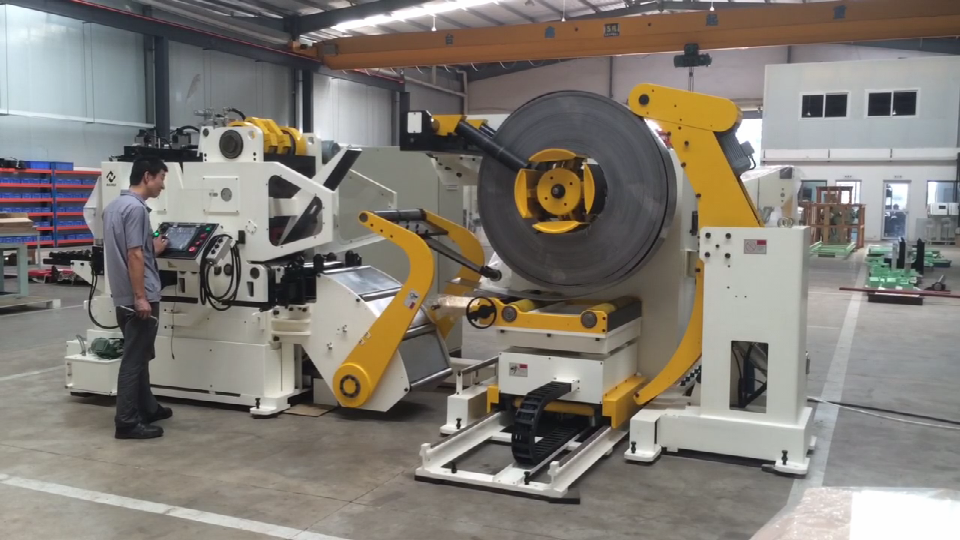

3 in 1 Compact Feeder levelling Machine with decoiler
1. Save factory space. 3 machines together in one.
2. High feeding precision: +/-0.05mm
3. Suitable for material thickness: 0.5-4.5mm.
4. Suitable for all kinds of metal coil automatic straightening and feeding, easy to operate.
5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.
6. Japan servo motor, PLC and other electrical parts, with little malfunction and long using time. High quality, lowest maintenance.
7. Can feed different length at the time, easy operation, safe and high stability.
8. We can customize the machine.
9. Fast speed:20m/min.
10. Coil car , pressing arm, conveyer belt , shearing machine , oiling machine etc. for choosing.
Specification
Model
GLK4-400
GLK4-600
GLK4-800
Coil Width(mm)
400
600
800
Coil Thickness(mm)
0.6-600
Max.Coil Weight(kg)
5000
5000
7000
Max.Coil O.D.(mm)
1400
Max.Coil I.D.(mm)
508
Max.Feeding Length(mm)
500
Max. Speed(m/min)
16-24
Straightener Roller(pcs)
Upper4/ Down3
Feeding Roller (group)
1
Servo Motor(kw)
5.5
7.5
7.5
Uncoiler expansion
Hydraulic
Uncoiler Motor(kw)
2.2
2.2
3.7
Power Voltage(V)
220V 60HZ/ 380V 60HZ
Air pressure(Mpa)
0.49
Application
Metal Stamping Parts

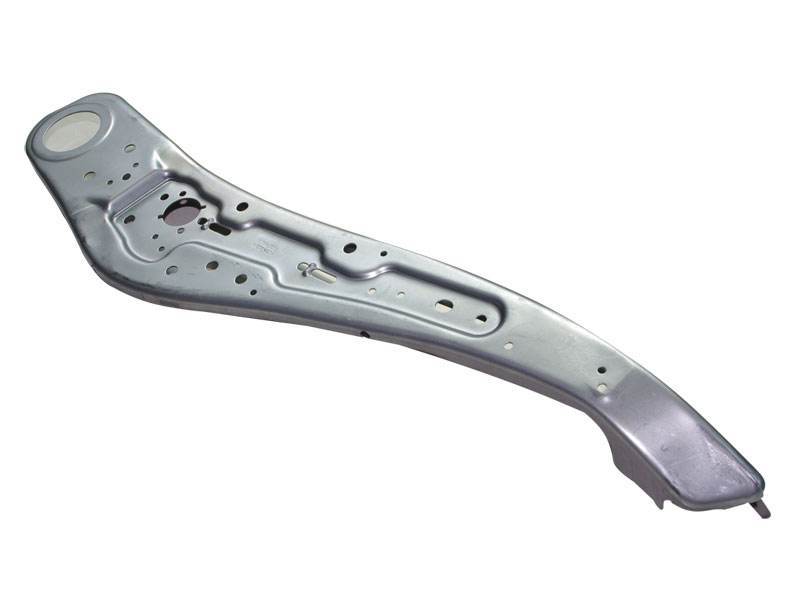

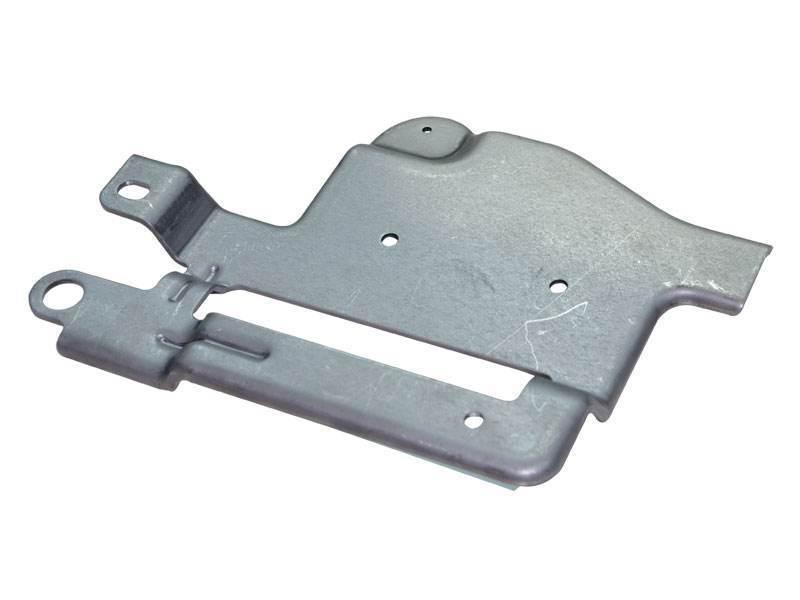

Automotive parts: Tie bar, Bracket, Damper, Brake plate.
Electrical accessory: Shell parts of printers, EI Sheet
Our Customer

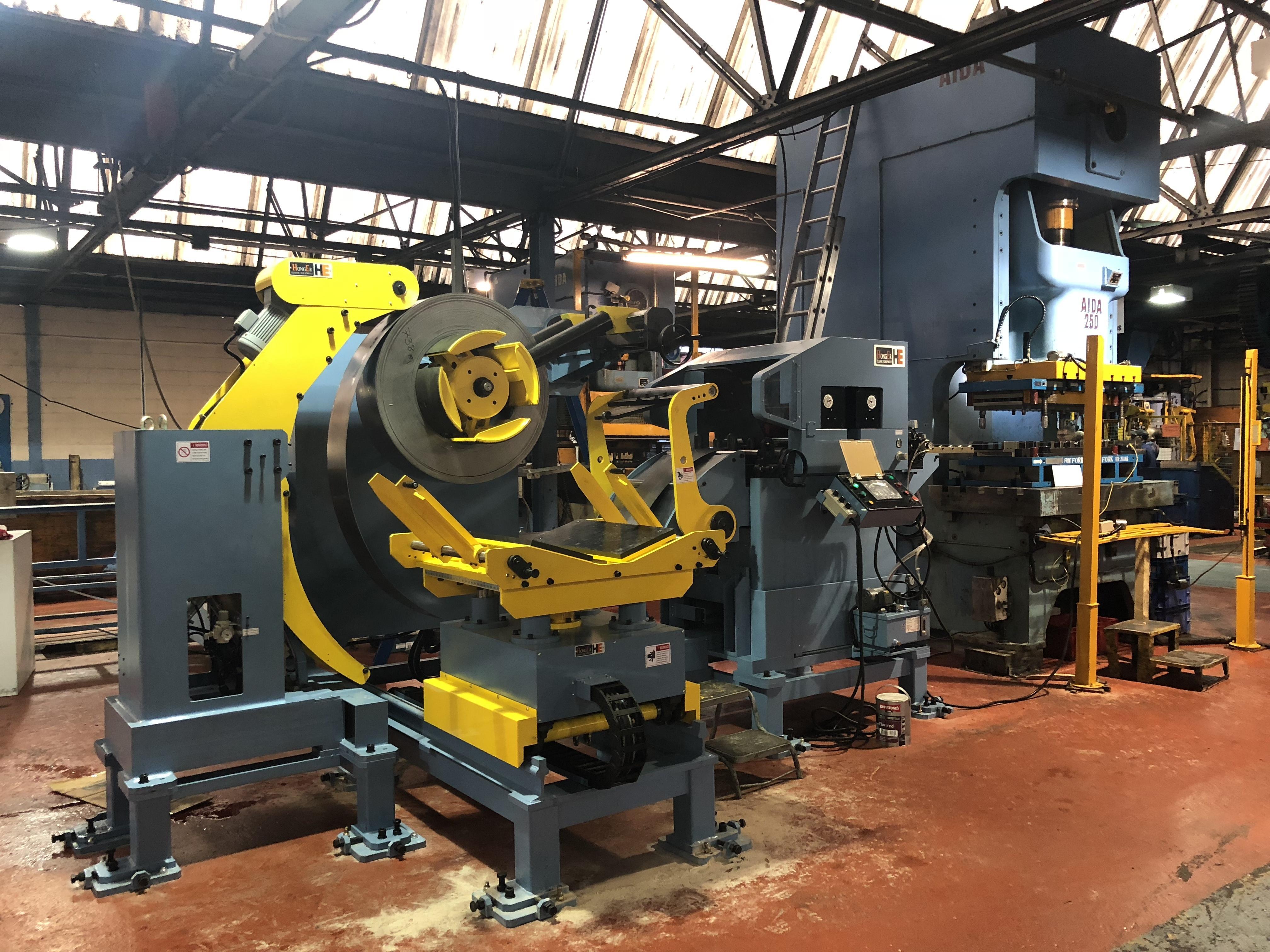

3-in-1 servo straightener feeder with uncoiler machine for printer accessories production line

This is one of our customer in UK

Decoiler straightener feeder 3 in 1 machine GLK4-600 with AIDA press

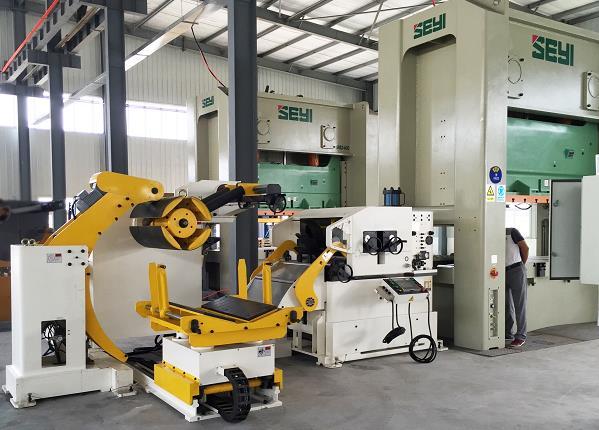

Servo feeding line for SEYI Press, combined decoiler, straightener, feeder with oiling unit

This is one of our customer in Malaysia.

They produce sheet metal parts with HONG-ER coil feeding line and SEYI press machine.
