Automatical Feeding Power Press NC Servo Roll Feeder Machine

Automatical Feeding Power Press NC Servo Roll Feeder Machine

Automatical Feeding Power Press NC Servo Roll Feeder Machine
Automatical Feeding Power Press NC Servo Roll Feeder MachineAutomatical Feeding Power Press NC Servo Roll Feeder MachineAutomatical Feeding Power Press NC Servo Roll Feeder MachineAutomatical Feeding Power Press NC Servo Roll Feeder MachineAutomatical Feeding Power Press NC Servo Roll Feeder Machine
CategoriesSmall Feeder Machine
AlbumView larger image
BrandHongEr
ModelRNC-600
Metal sheet widthup to 600 mm
Metal sheet thickness0.2-3.2 mm
Feed lengthup to 9999.99 mm
Feed accuracy±0.1mm
Roller pressurePneumatic
Feeding speed20 m/min
Servo motorYaskawa, Japan
Servo driverYaskawa, Japan
PLCMitsubishi, Japan
Touch screenWeinview, Taiwan / Seimens
FOB portSHENZHEN
Terms of PaymentL/C, T/T
Update Time2019-05-19
Detail Information
Automatical Feeding Power Press NC Servo Roll Feeder Machine

Characteristic of NC Servo Feeder.

1. Adopt high quality famous brand no noise servo motordrive, effectively shorten transmission distance         adjustment andtest time.
2. Using the high sensitivity decoder, the feedback accuracy isimproved.
3. It can eliminate the gap ogear, wear very little, no noise,no lubrication, safety and environmental                protection.
4. Motor internal-type device canavoid damage when handlingand handling.
5. It is suitable for feeding all kindof metal coils, such as aluminumcoils, stainless steel coils, coppercoils,        galvanized coils and so on.
Product Description

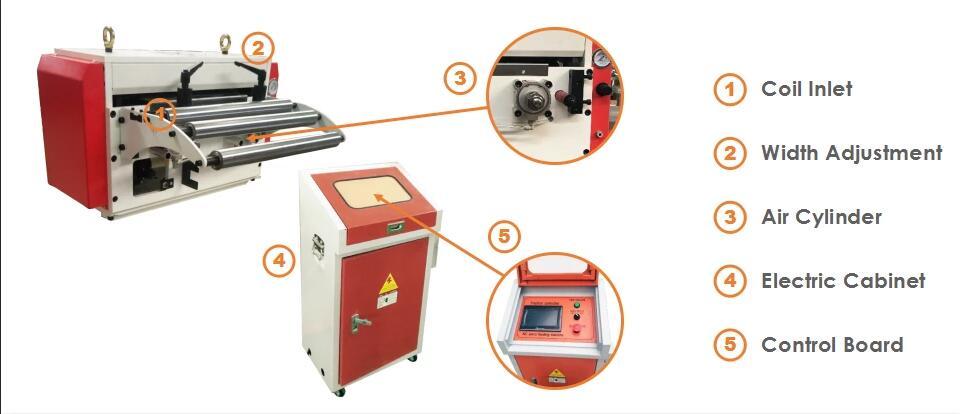

RNC SERVO FEEDER

1. Material thickness from 0.2mm to 6.0mm

2. Coil width up to 1300mm

3. Pneumatic Type Releasing System

4. Line speed up to 20m/min

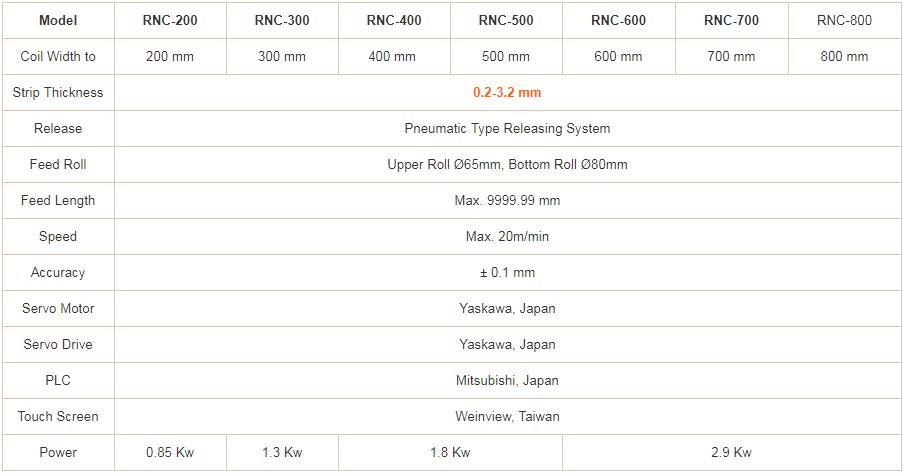

Specification

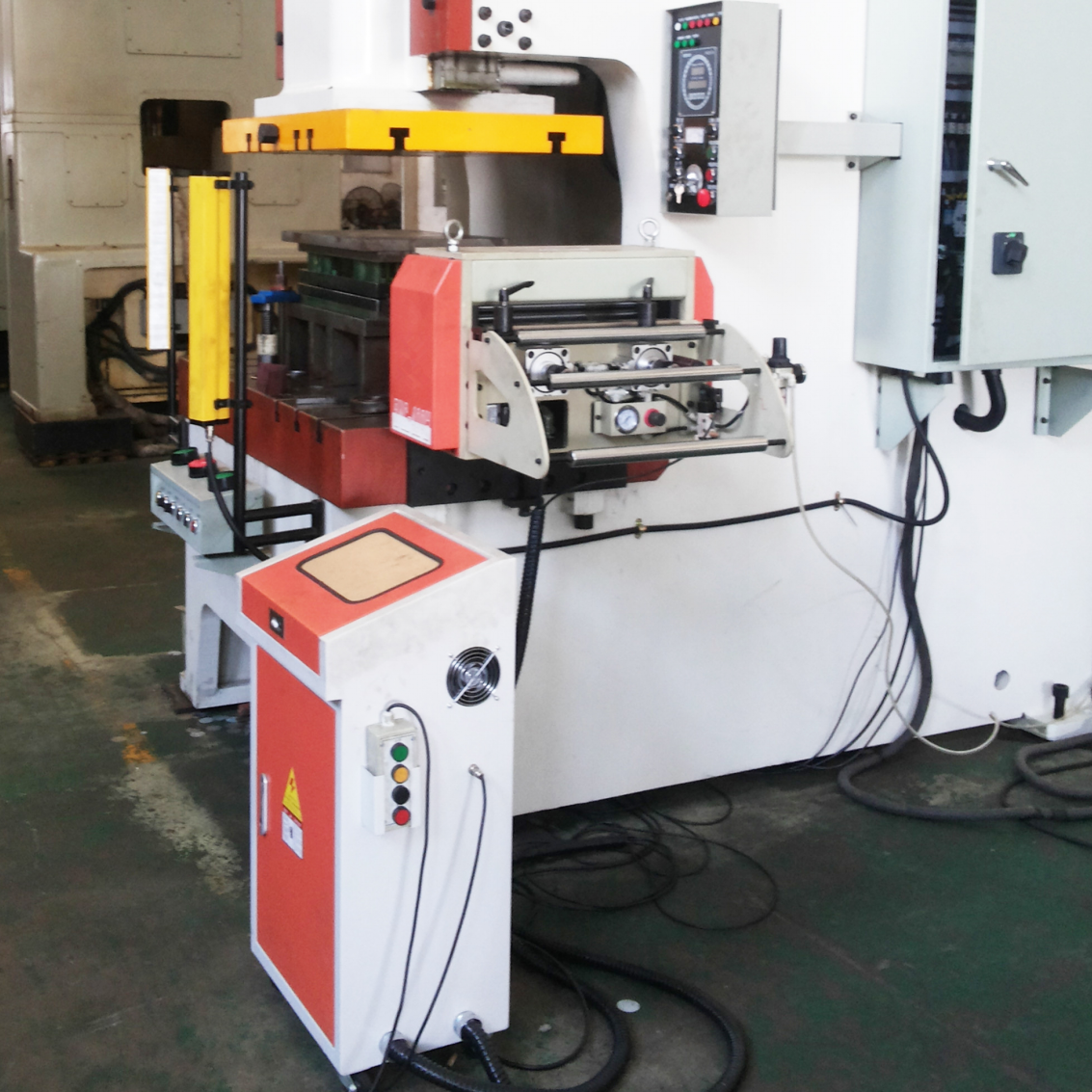

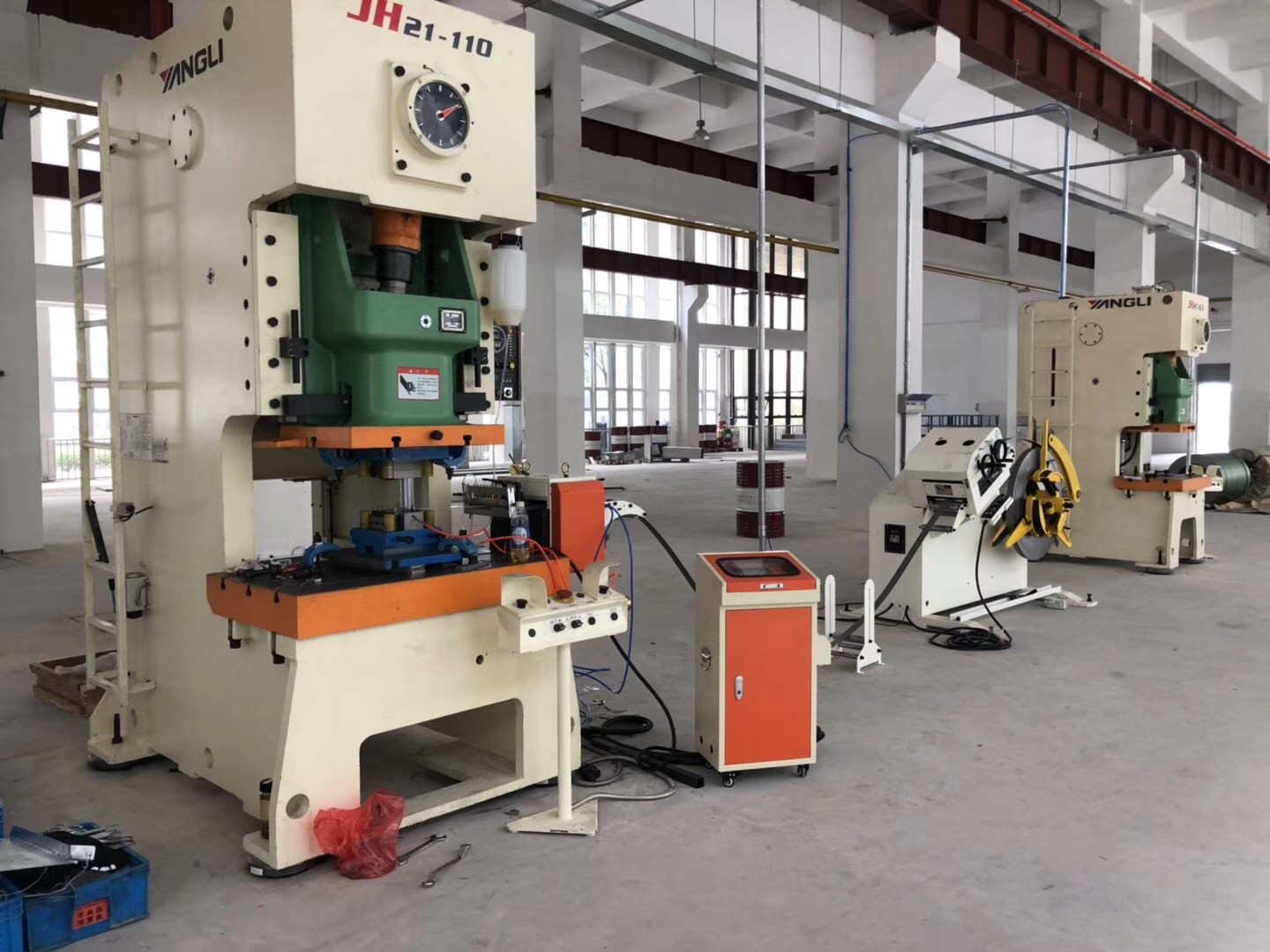

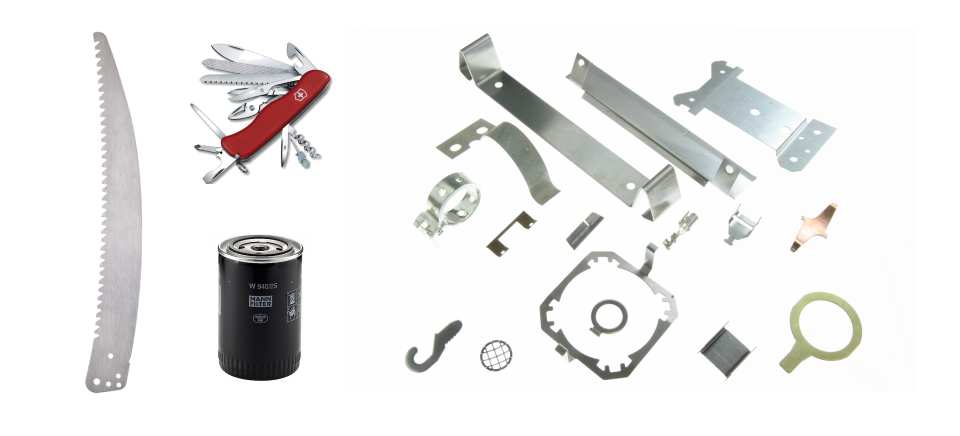

Application




RNC Servo Feeder Machine
Coil Sheet Automatic Feeder with Straightener Use in Press Machine and Machine Tool
