High Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener Machine

High Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener Machine

High Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener Machine
High Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener MachineHigh Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener MachineHigh Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener MachineHigh Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener MachineHigh Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener Machine
CategoriesMetal Strip Straightener
AlbumView larger image
BrandHongEr
ModelGL-600
Metal sheet thickness0.3-3.2 mm thick
Metal sheet inner diameter460-520 mm
Metal coil weight2000 kg
Metal coil widthUp to 400 mm
ExpansionManual(Hydraulic is option)
Straightener RollerØ48mm*7pcs
Roller PressurePneumatic rods
Roller adjustmentEccentric turbine worm adjusting
Decoiler motorNo motor, or motorized for option
InverterDelta Brand, from Taiwan
FOB portShenzhen
Terms of PaymentL/C, T/T
Update Time2019-07-18
Detail Information
High Precise 2in1 Automatic Metal Strip Uncoiler Cum Straightener Machine
Description

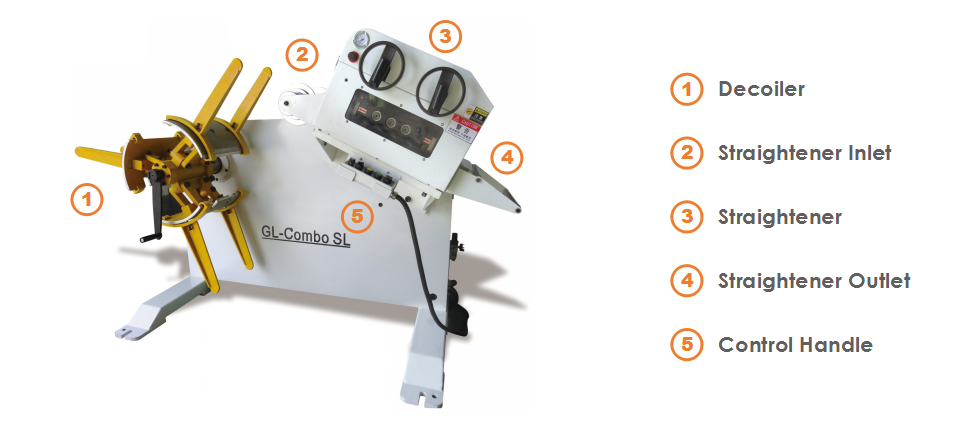

2in1 Uncoiler cum Straightener Machine

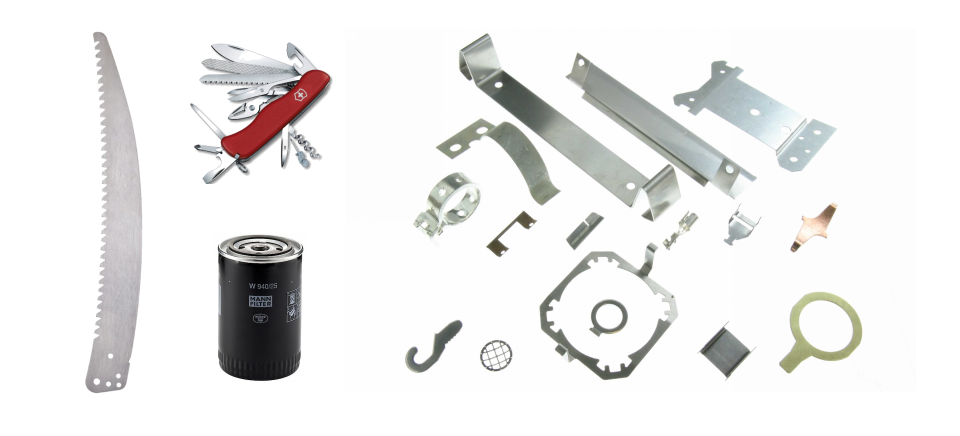

1.It is suitable for the production of accessories such as household appliance, microwave oven and plug

2.Roller leveling and material frame are installed on the same machine stage, convenient and small area

3.Can choose automatic oil pressure expansion method, increase the efficiency of work
Specification
Model
GL-200
GL-300
GL-400
GL-500
GL-600
Coil Width(mm)
200
300
400
500
600
Coil Thickness(mm)
0.3-3.2
Line Speed (m/min)
15
Straighterner
roller (Q'ty)
4 on top / 3 on bottom
Bottm rollers have drive function
Pinch Roller (Q'ty)
inlet: 2/ outer: 2
Max.material weight(kg)
600
1000
1500
2000
2000
Coil I.D.(mm)
460-520
Coil O.D.(mm)
1200
Main Motor(HP)
1
2
2
3
3
Mandrel expansion
Manual(Hrdaulic expansion is optional)
Application
GL-600 Uncoiler cum Straightener Machine widely used in press stamping, punching production line.

The combined structure guarantee a synchronization between decoiler and straightener and save work space.

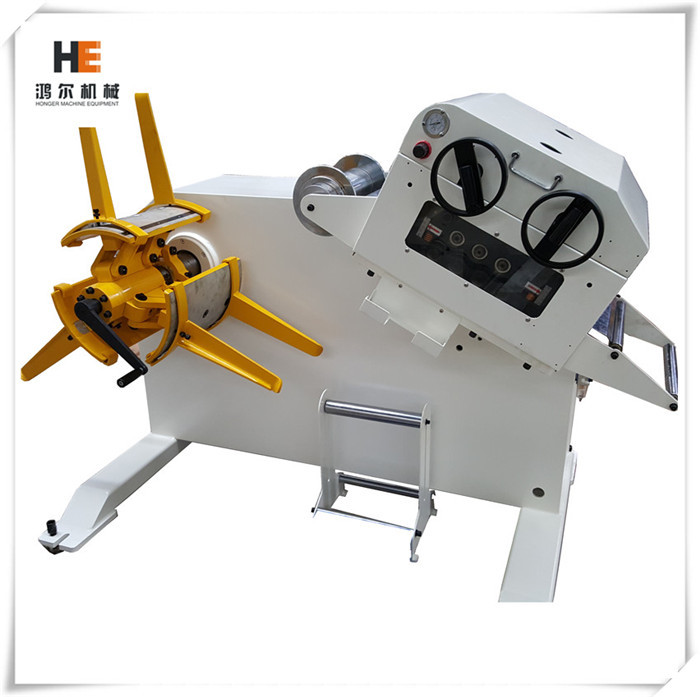

GL-600 Uncoiler cum Straightener Machine

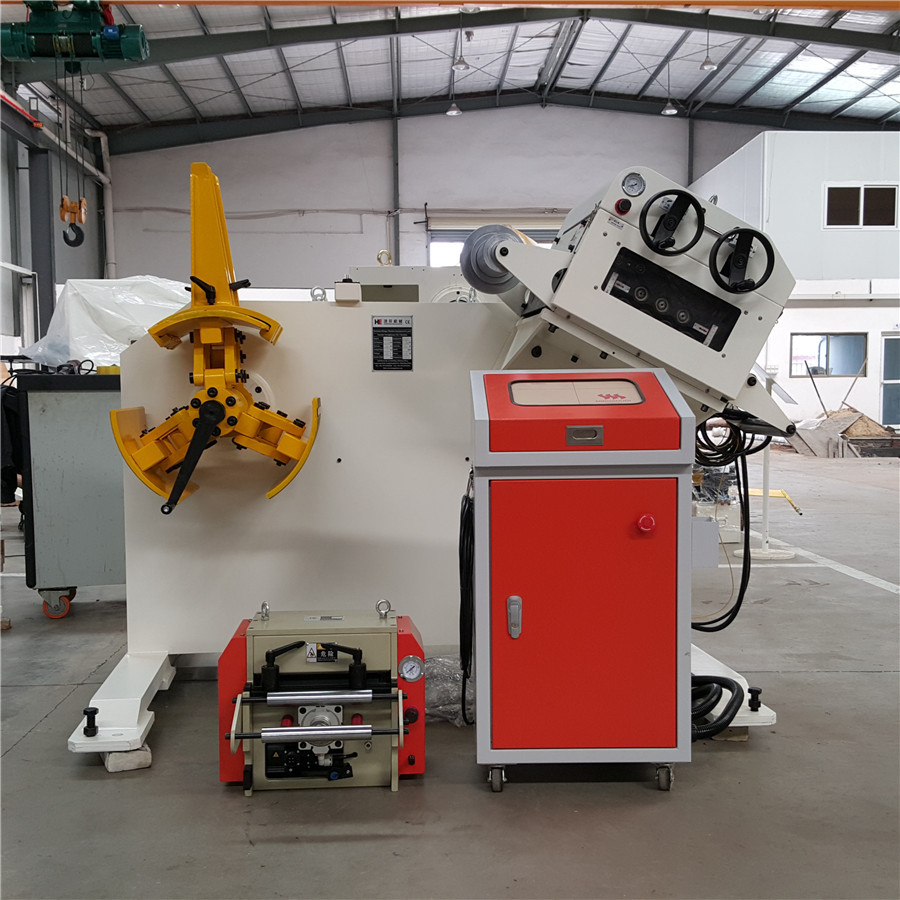

GL-600 2 in 1 decoiler straightener machine
With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve precise straightening performance for many different kinds of material.

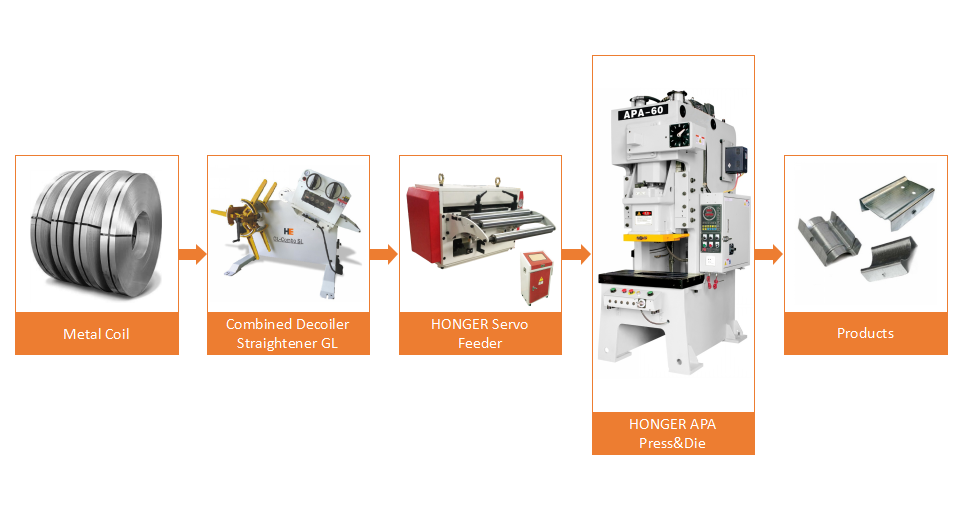

Metal stamping solution suggestion:
GL+ NC servo coil feeder + Press
Metal Stamping Solution

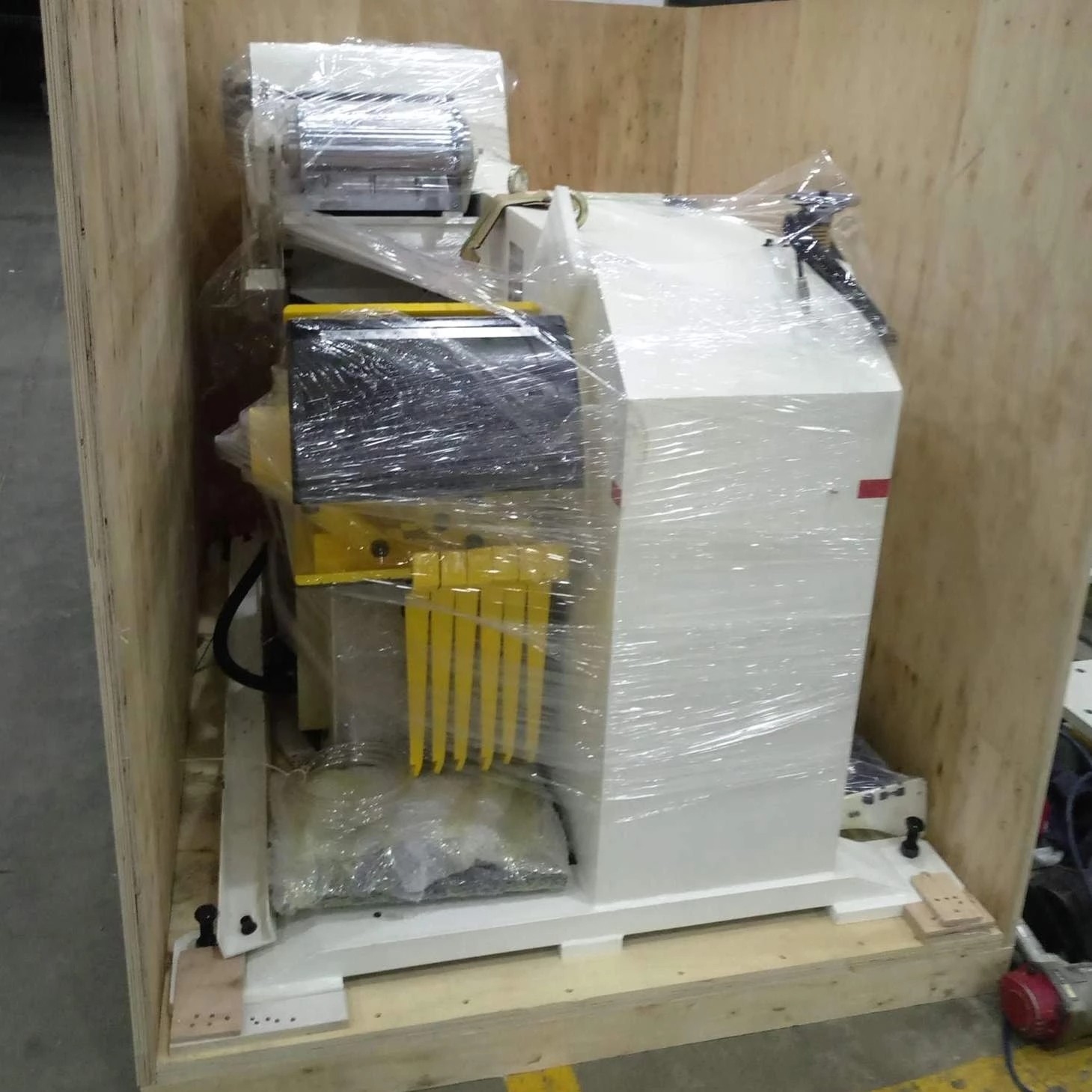

Package
